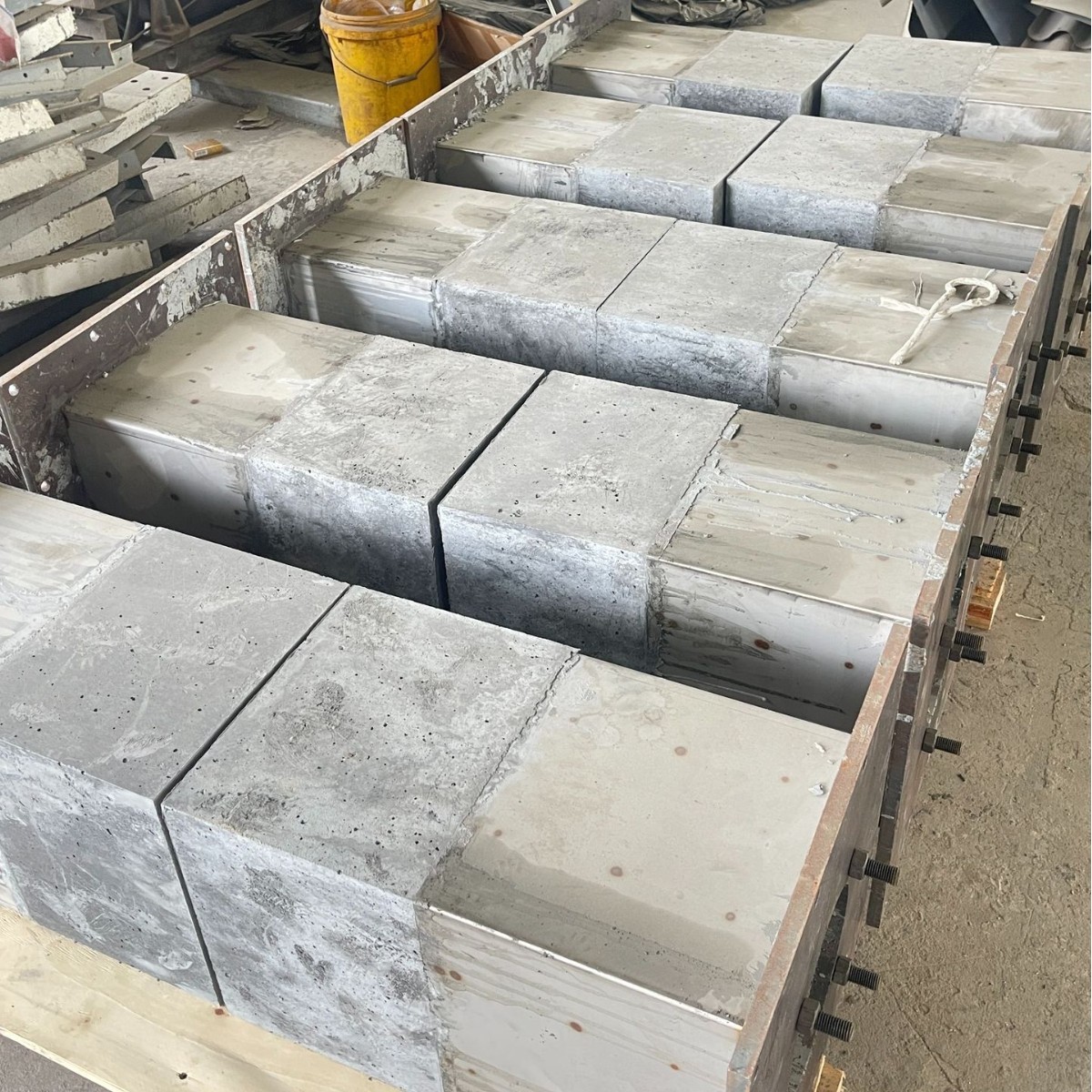

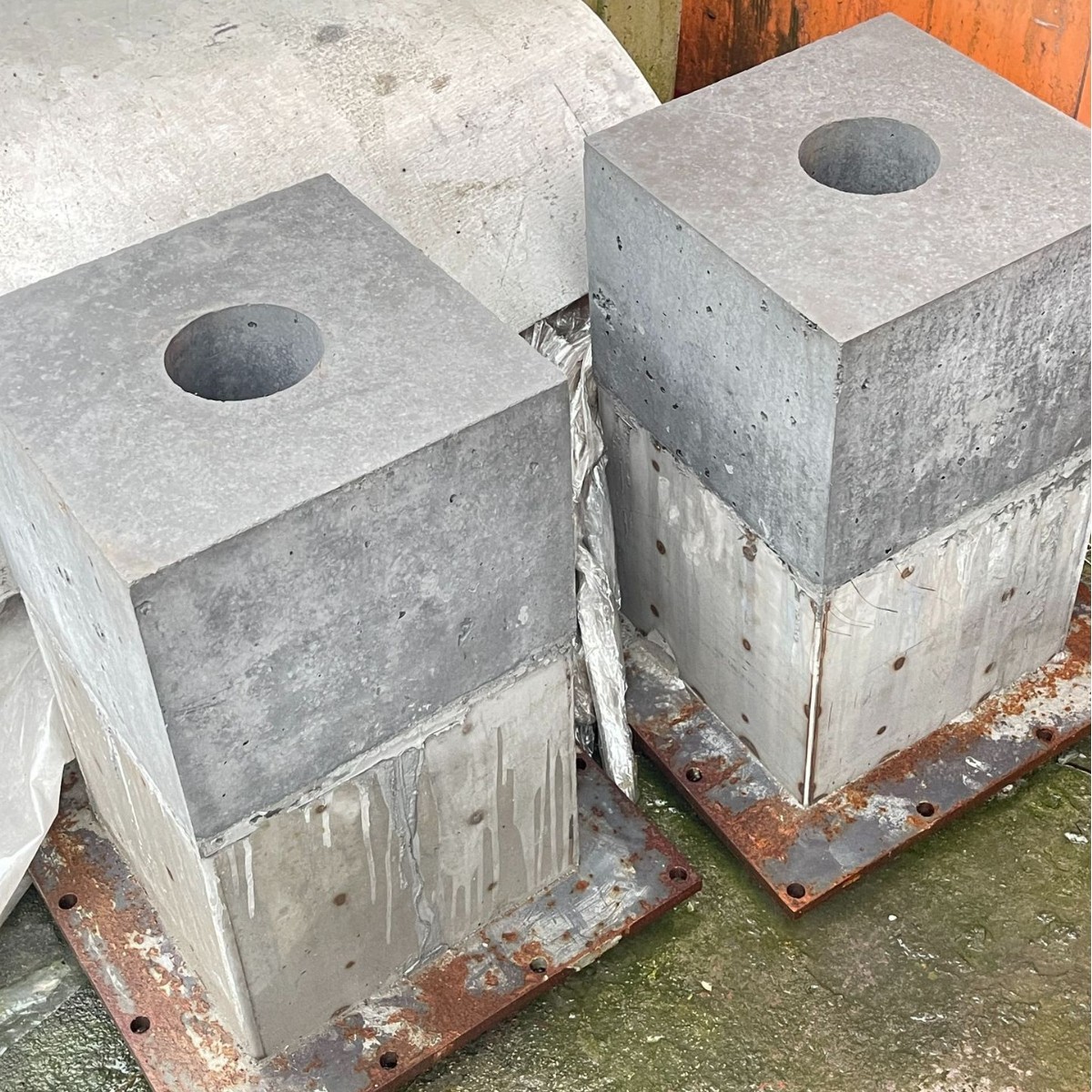

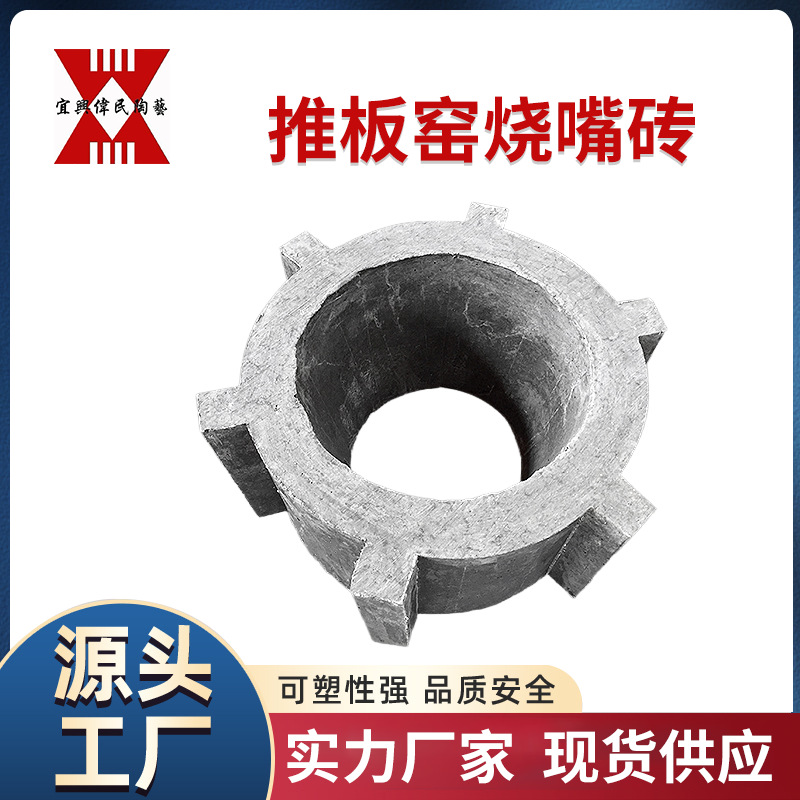

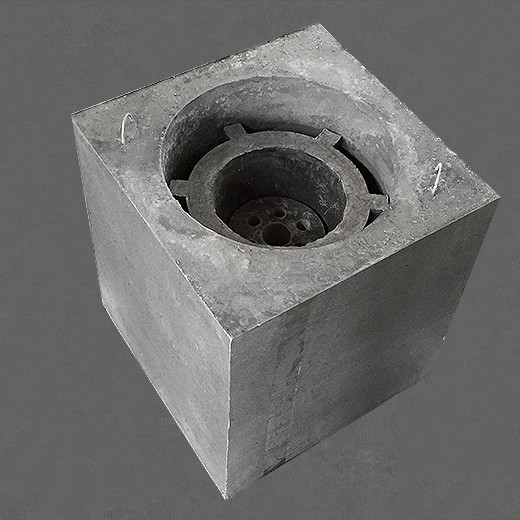

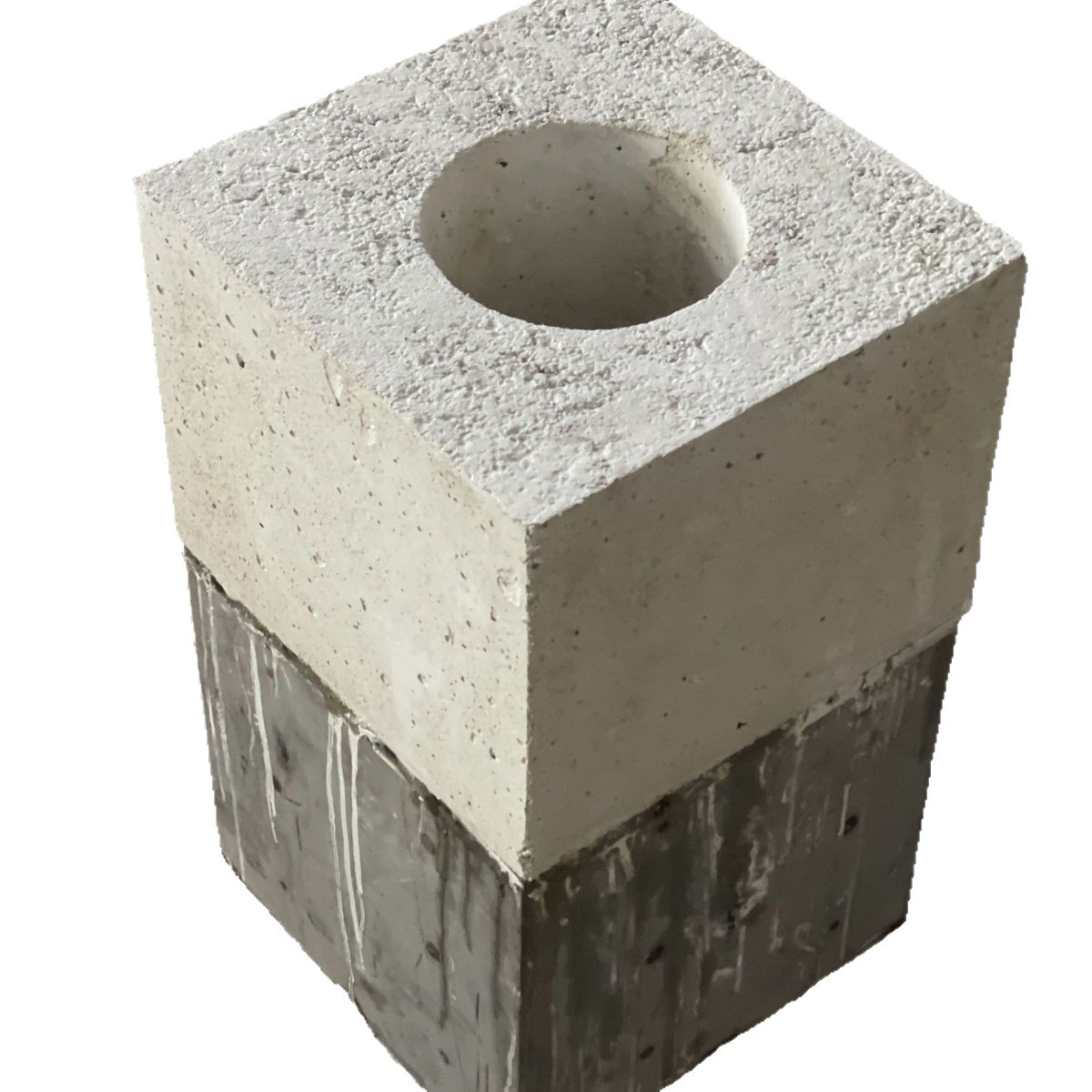

推板窑烧嘴砖

产品概述

推板窑烧嘴砖 属于窑具匣钵与承烧板中的烧嘴砖产品，结合莫来石 / 刚玉莫来石 / 刚玉等材质或用途整理，关键词包括 高温烧嘴砖、刚玉烧嘴砖、铬钢玉烧嘴砖、刚玉莫来石烧嘴砖。产品适用于陶瓷烧成、粉体烧结、电子陶瓷承烧与窑炉装载，实际规格、材质、温度和结构以双方确认的图纸或样品为准。

产品特点

• 适用于高温环境，材质和结构可按使用温度、气氛和装载方式确认。
• 承载面、厚度和支撑方式可根据产品重量、烧成制度和窑炉尺寸调整。
• 产品围绕莫来石 / 刚玉莫来石 / 刚玉等材质或用途整理，支持按图纸、样品或工况要求定制。

典型应用

• 陶瓷烧成、粉体烧结、电子陶瓷承烧与窑炉装载
• 燃气窑炉、加热炉、退火炉等热工设备烧嘴部位

技术参数

产品名称	推板窑烧嘴砖
英文名称	Burner Brick
产品分类	窑具匣钵与承烧板 / 烧嘴砖
主要关键词	高温烧嘴砖、刚玉烧嘴砖、铬钢玉烧嘴砖、刚玉莫来石烧嘴砖
参考规格	300×300×500
型号/牌号	WM-NH-170
材质/用途	莫来石 / 刚玉莫来石 / 刚玉
参考温度	高温工况，具体温度按材质与使用条件确认
典型应用	陶瓷烧成、粉体烧结、电子陶瓷承烧与窑炉装载；燃气窑炉、加热炉、退火炉等热工设备烧嘴部位
常见材质	莫来石 / 刚玉莫来石 / 刚玉
参考尺寸	标准砖或异形砖均可按图纸确认
荷重/强度	需结合使用温度、砌筑部位、炉压和机械冲刷情况选型
热震稳定性	频繁升降温部位建议优先确认抗热震和抗剥落要求
配套说明	可与耐火泥、浇注料、烧嘴砖、炉衬件配套使用
品牌	宜兴伟民
资料来源	公司内部资料
定制方式	可按图纸、样品、尺寸、材质、使用温度和工况要求确认

选型参考

• 确认砌筑部位、热面温度、承重情况、炉气气氛和是否需要保温。
• 异形砖、烧嘴砖和炉口砖建议提供图纸或旧件尺寸。
• 需要配套施工时同步确认耐火泥、浇注料或锚固结构。

询价需提供

• 产品名称或应用部位
• 尺寸/图纸/样品照片
• 材质或使用温度
• 数量和交期要求
• 砌筑部位与砖型尺寸
• 是否需要配套耐火泥或浇注料

定制说明

本页参数根据产品名称、关键词、同类产品工况和公司内部资料整理。定制类产品请提供尺寸、材质、使用温度、数量、应用工况和图纸，便于确认生产方案、报价和交期。

Product Overview

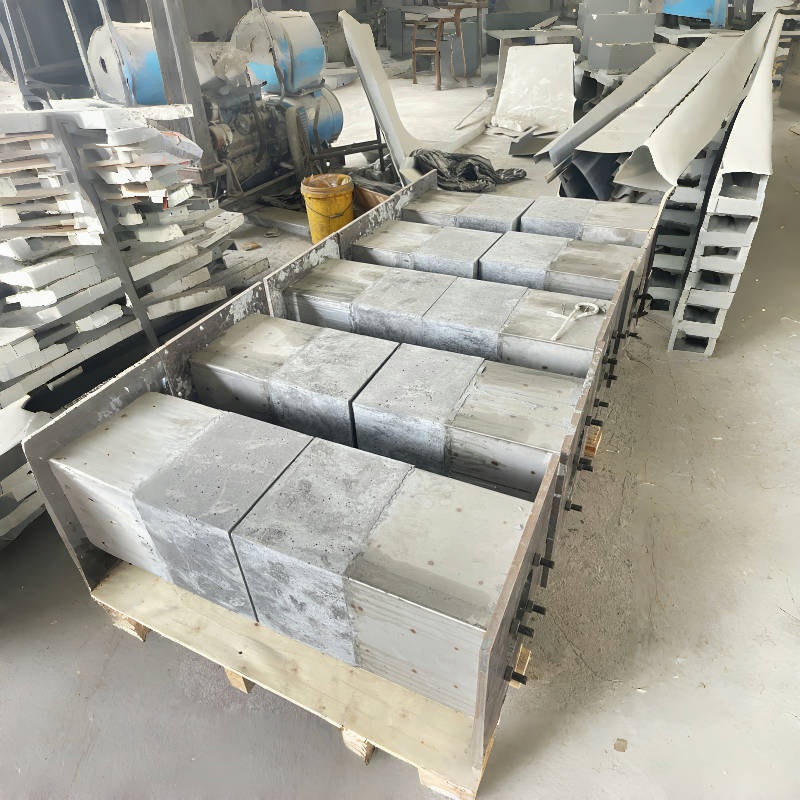

Corundum-Mullite Burner Brick is supplied for Kiln Furniture, Saggers & Plates / Burner Bricks applications. It is suitable for ceramic firing, powder sintering, electronic ceramic support and kiln loading. Final dimensions, material grade, service temperature and structure should be confirmed by drawings, samples and actual working conditions.

Key Features

• Material grade, dimensions and structure can be confirmed by drawing, sample or operating conditions.
• Selected for high-temperature service according to temperature, atmosphere, load and thermal cycling.
• Plate thickness, support span and load capacity should be matched with firing temperature and product weight.

Typical Applications

• ceramic firing, powder sintering, electronic ceramic support and kiln loading
• burner areas of gas kilns, heating furnaces, annealing furnaces and other thermal equipment

Technical Parameters

Product Name	Corundum-Mullite Burner Brick
Product ID	920320497694
Category	Kiln Furniture, Saggers & Plates / Burner Bricks
Reference Size	300×300×500
Material / Grade	Corundum-Mullite
Service Temperature	High-temperature service; final grade to be confirmed by material and working conditions.
Typical Applications	ceramic firing, powder sintering, electronic ceramic support and kiln loading; burner areas of gas kilns, heating furnaces, annealing furnaces and other thermal equipment
Customization	Available by drawing, sample, dimensions, material and application requirements.
Quotation Basis	Final quotation depends on material, size, quantity, processing difficulty and lead time.

Selection Guide

• Confirm masonry position, hot-face temperature, load, furnace atmosphere and insulation requirements.
• For special-shaped bricks, burner blocks and furnace-mouth bricks, drawings or old-part dimensions are recommended.
• If installation support is required, refractory mortar, castable or anchoring structure should be confirmed together.

Information Required for Quotation

• Product name or application position
• Dimensions, drawings or sample photos
• Material or working temperature
• Quantity and requested lead time
• Masonry position and brick shape size
• Whether matching mortar or castable is required

Customization Notes

This product information is provided for technical selection. Final specifications, quotation and delivery schedule are confirmed according to drawings, samples and operating conditions.
